Tiny brick-busting ‘muscles’ for miniature robotics are sourced from wood

Robotics is just one potential use for the material, which is made with cellulose nanofibers (CNFs) derived from wood. The technology also presents possibilities in medicine and biochemical production.

The results were reported in Advanced Materials by researchers at KTH Royal Institute of Technology.

Unlike robotic muscles that expand with the power of pressurized air or liquid, these hydrogels swell due to water movement driven by electrochemical pulses, says Tobias Benselfelt, a researcher at KTH Royal Institute of Technology’s Division of Fibre Technology.

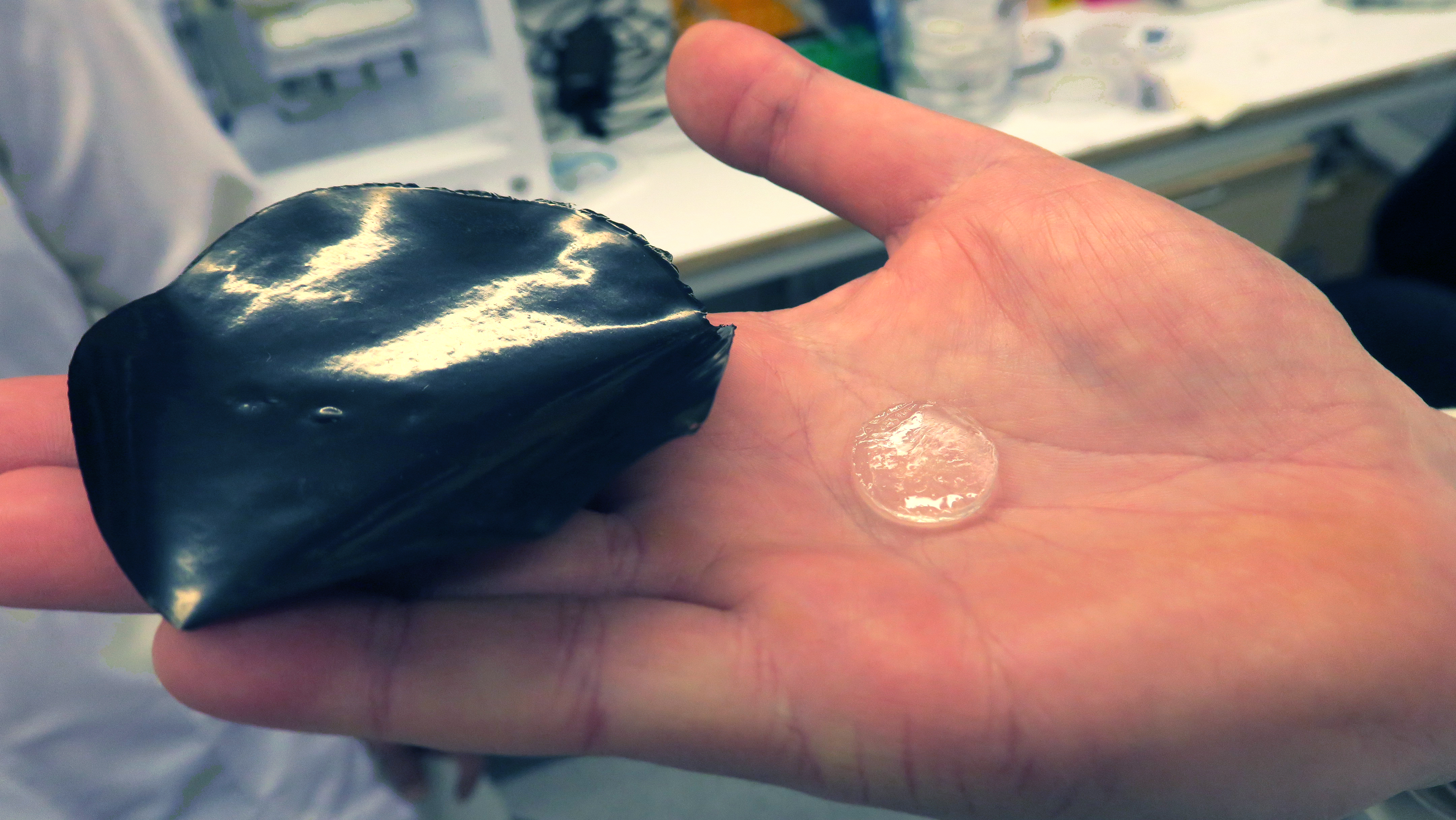

The material’s key components are water, carbon nanotubes as a conductor, and cellulose nanofibers that are sourced from wood pulp. Though the material is a hydrogel, it appears as strips of plastic when it is combined with carbon nanofibers.

The material’s strength comes from the orientation of the nanofibers in the same direction, just as in wood grain. “Nanofiber hydrogels swell uniaxially—on a single axis—generating high pressure,” Benselfelt says. “A single 15 x 15cm piece can lift a 2-tonne car.”

The material’s swelling can be controlled electronically as a result of adding conductive carbon nanotubes to the hydrogel, which creates what the researchers call electrochemical osmotic hydrogel actuators.

KTH Professor Max Hamedi, who co-authored the work, says inspiration for the project came from the way that plants grow.

“Think about how strong plants are,” Hamedi says. “Trees can grow up through the pavement by the same forces that we’re applying – we’re just controlling that force electronically.”

One exciting aspect of the research is that the material’s porosity can be controlled electronically,” Benselfelt says. Porosity can be increased by up to 400 percent, which makes these hydrogels an ideal material for electrotunable membranes to separate or distribute molecules or drugs in situ.

This precisely-controlled expansion is also what enables the material to exert enough force to break a small brick, which is what the researchers demonstrated in conjunction with their study. Though for now, the researchers envision their use being limited to small devices such as valves or switches in microfluidics. “Currently, they come in thin sheets, which limits their use as artificial muscles for larger robots,” Hamedi says.

Looking farther into the future one possible robotics application could be in underwater robots. Benselfelt says that these can be used at great depths since hydrogels cannot be compressed by water pressure.

“Generally, it is a step towards soft machines that are lifelike. However, this vision is very far in the future,” he says.

Another benefit of the technology is that it is relatively inexpensive to manufacture. The team continues to optimize the material, 3D-print electronic muscles, and study how to scale it for commercial use.

The research was carried out at KTH Royal Institute of Technology and the Digital Cellulose Center, and involved collaborators at Max Planck Institute of Intelligent Systems, Linköping University, and Technische Universität Braunschweig,
